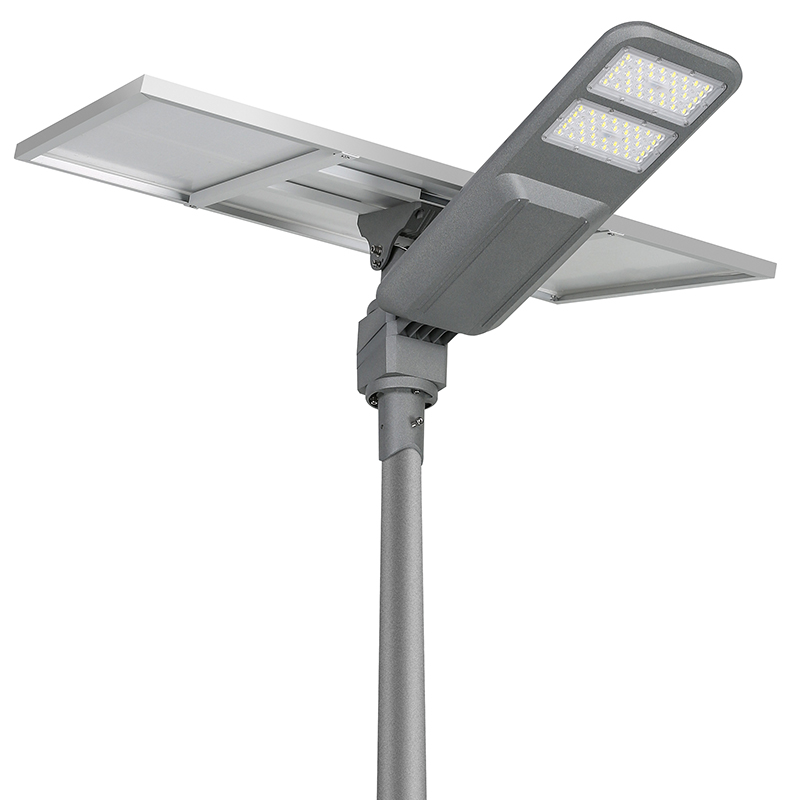

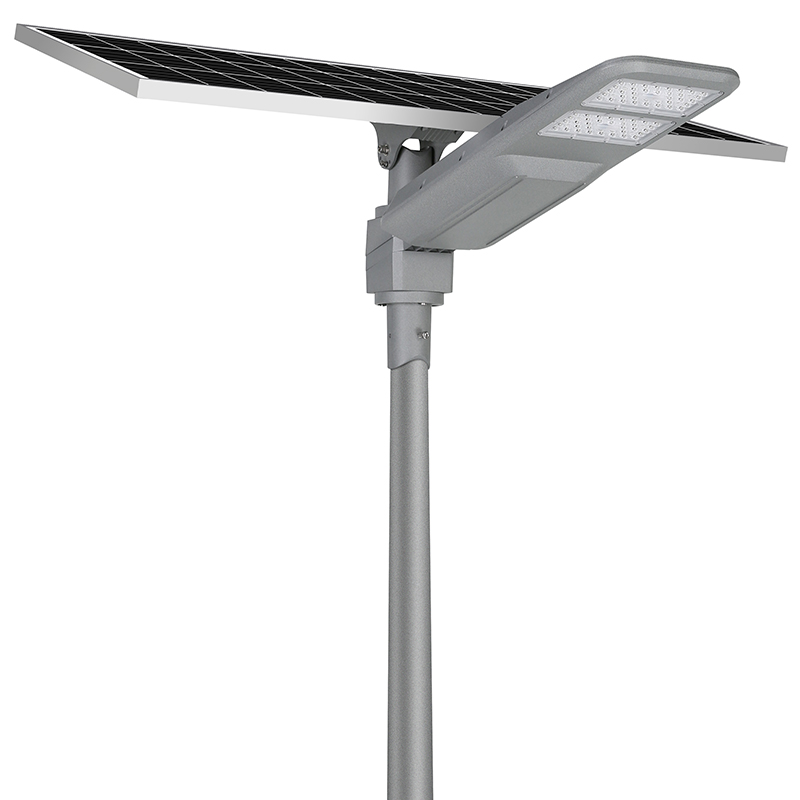

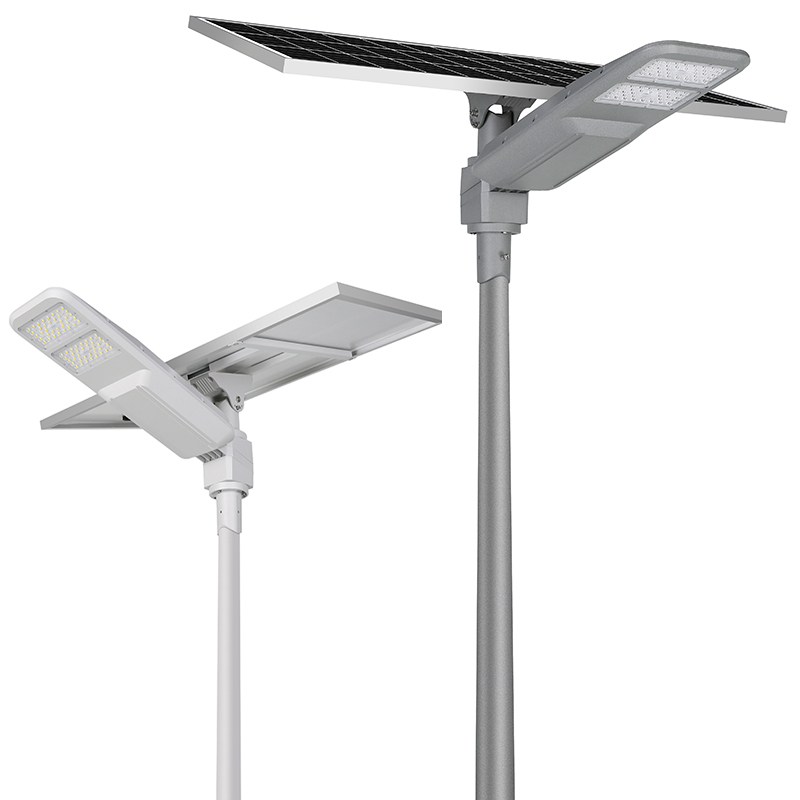

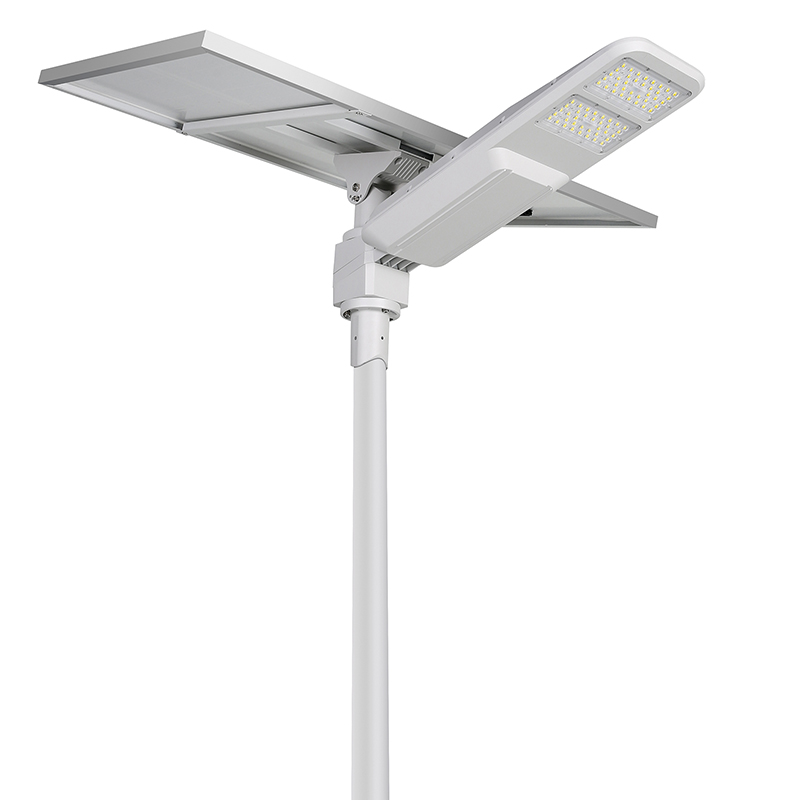

for Project Roadway Die-cast aluminum 18V 90W solar panel 384WH 12.8V Li-battery outdoor IP65 solar street light

Solar Garden Light: Solar post light
Solar landscape light
Solar lawn light
Solar pillar light
Solar bollard light
Solar wall light
Solar decorative light

· Model No. : CS-TYD1108

· Brand ：CANSUNLED

· Max Power : 90W ( 6483.7LM )

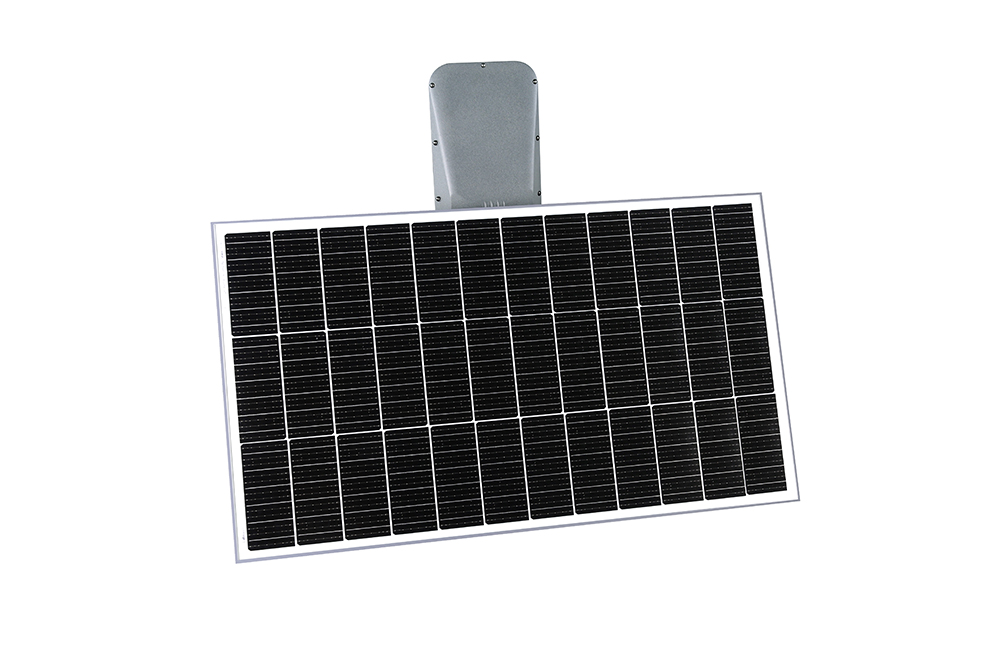

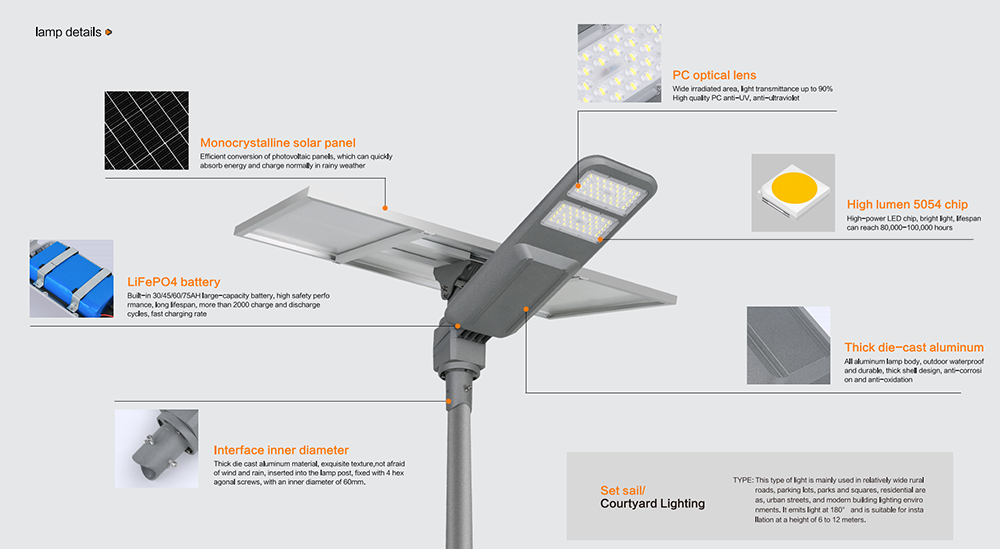

· Solar Panel : 18V / 90W Mono with MPPT Controller

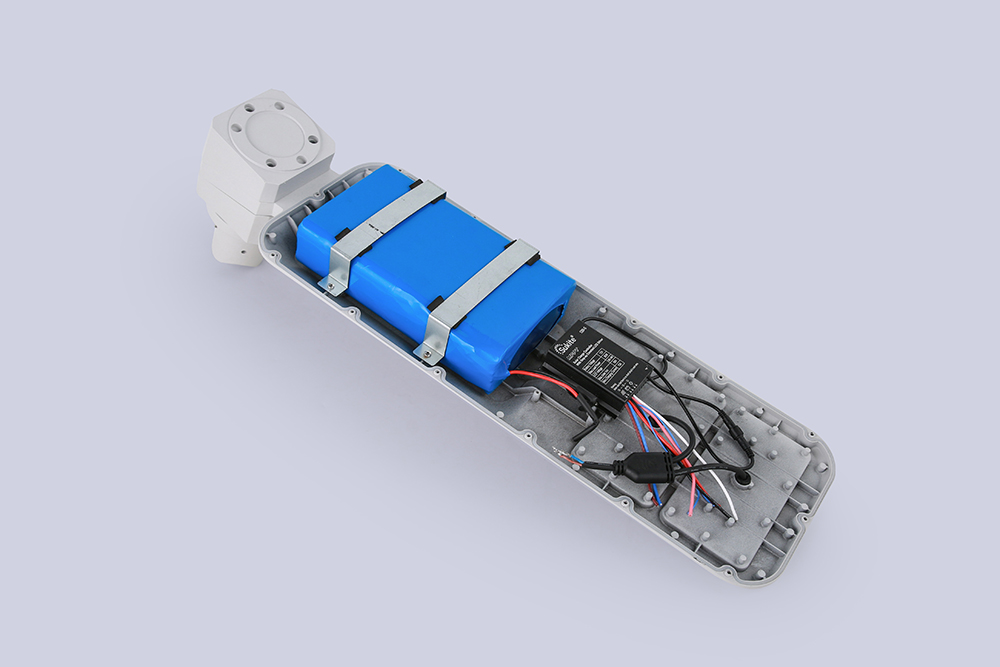

· Li-Battery : 384WH 12.8V （12.8V 30AH）

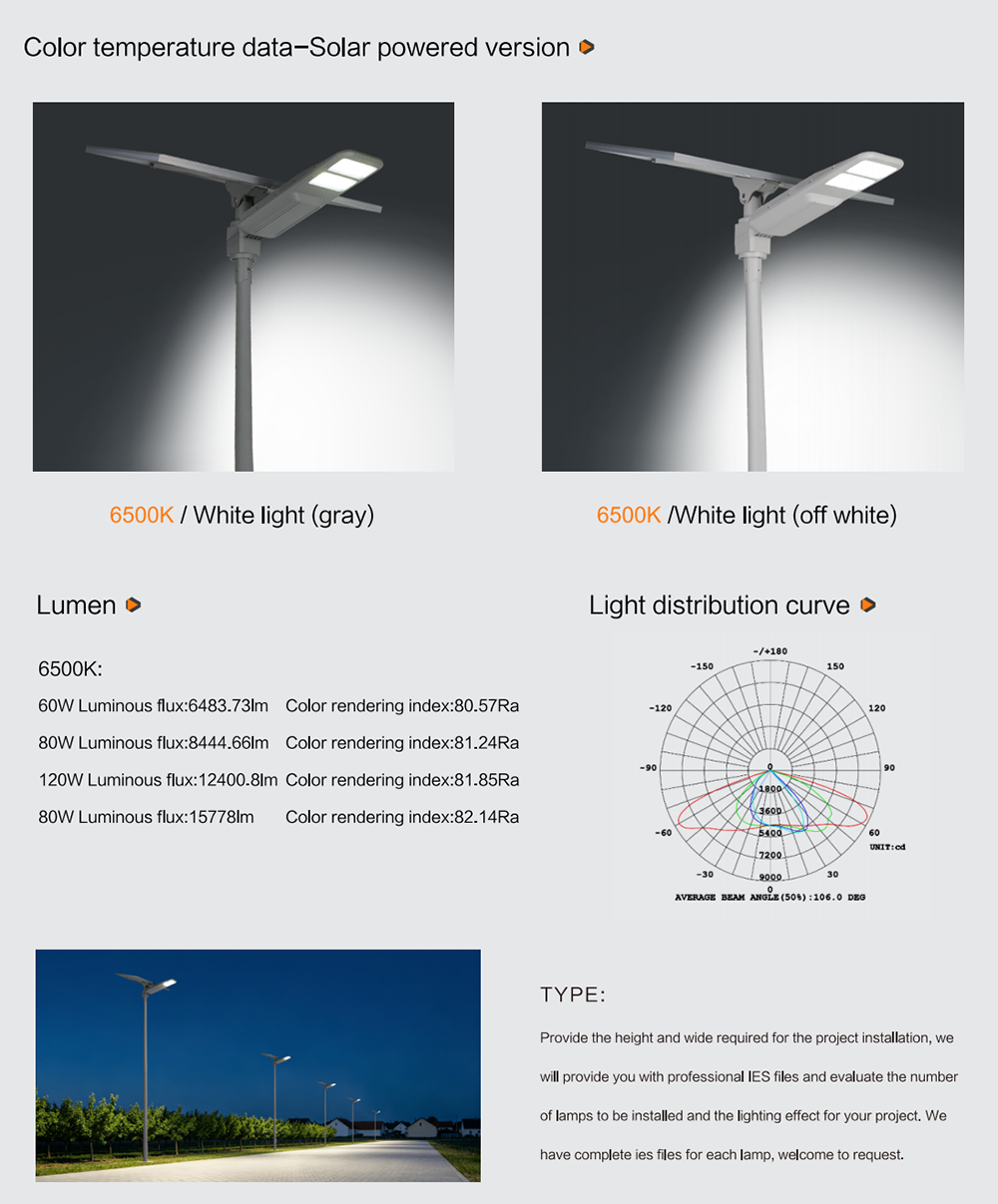

· Luminous : 6483.7LM

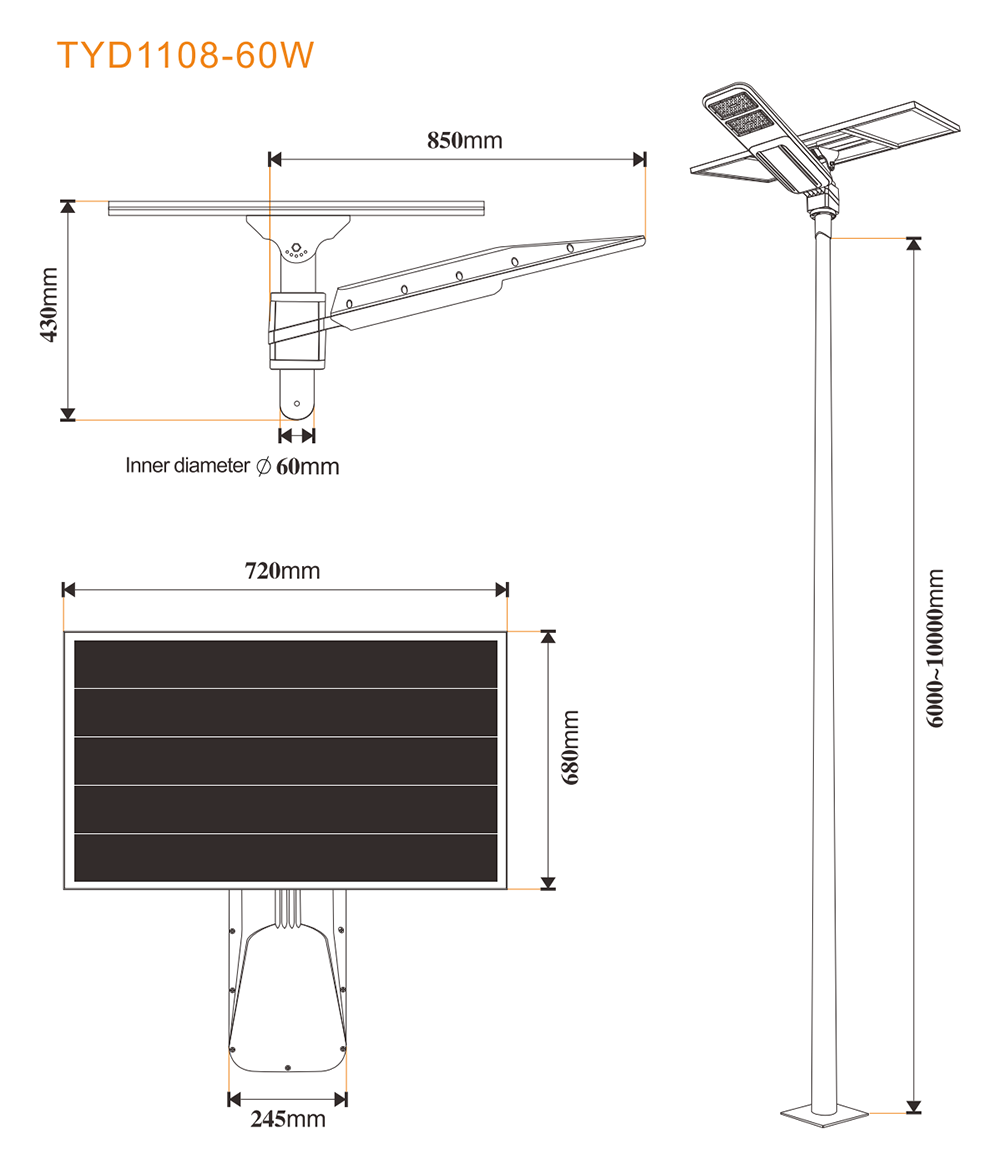

· Dimensions : 850*245*430mm

· Charging Time : effective sunshine 4~6 hours

· Discharge time : 3~5 rainy days

· CCT(K) : White light ( optional )

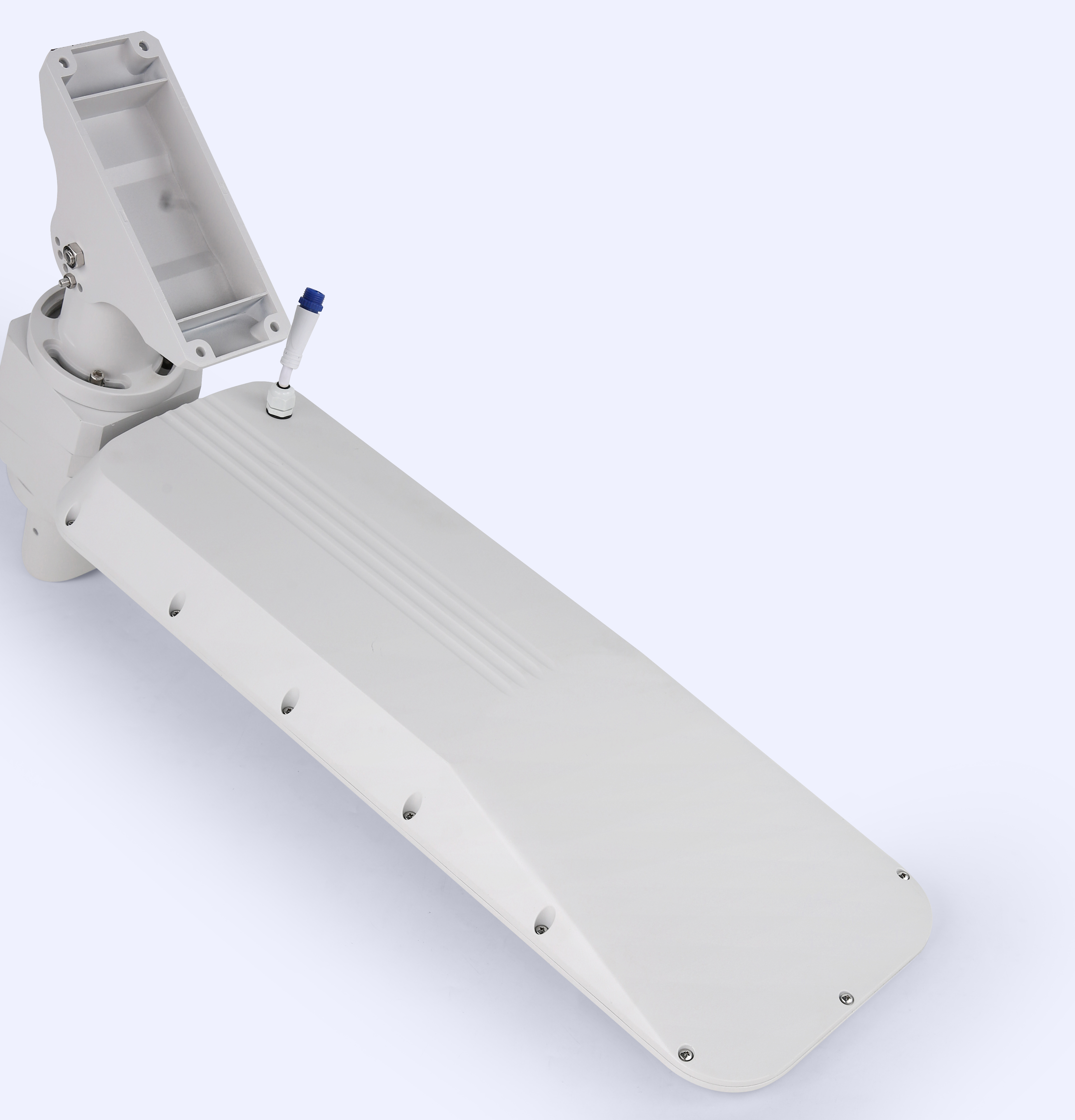

· Material : Die casting aluminum (sun-proof)

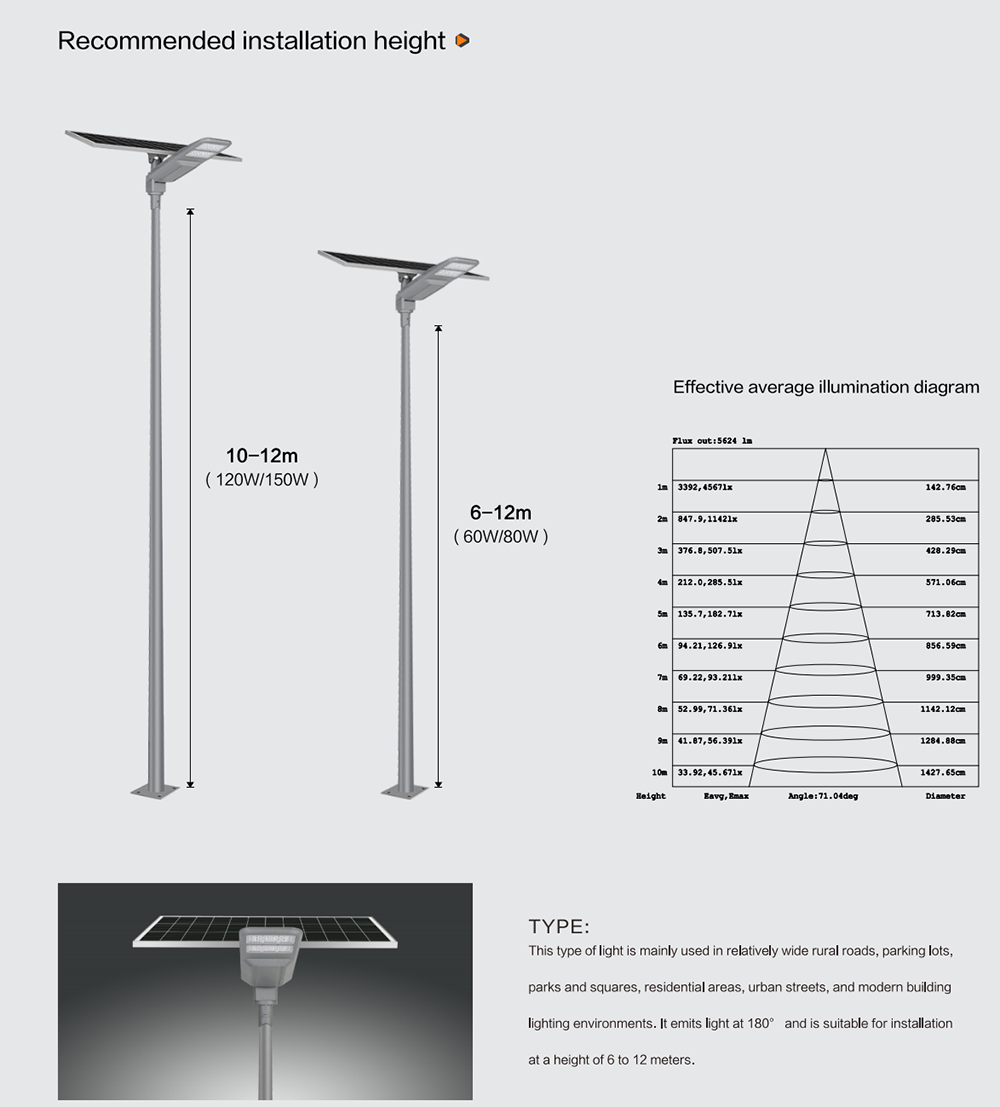

· Installation height: 6~10M

Packaging information:

Carton Size:880*330*290MM

Solar Panel Size:730*150*690MM(4PCS)

Q'ty/ctn:1Set

Lamp G.W:11KG

Solar Panel G.W:26.7KG

· Working mode ：

1. Always lighting mode

2. Lighting time 2~3hour after, change to radar sensors lighting.

3. Radar mode: radar sensors

· Control mode： MPPT control + Lighting & Time control +Microwave sensor

Turn off lighting automatically and charge in daytime, Turn on lighting automatically at night.

Suppose the sun sets at 18:00~06:00 (Lighting time 12h) :

18:00 ~ 19:00: --- 100% brightness (Output Power: 90W )

19:00 ~ 22:00: --- 70% brightness (Output Power: 60W )

22:00 ~ 02:00: --- 50% brightness (Output Power: 45W )

02:00 ~ 06:00: --- 30% brightness (Output Power: 30W )

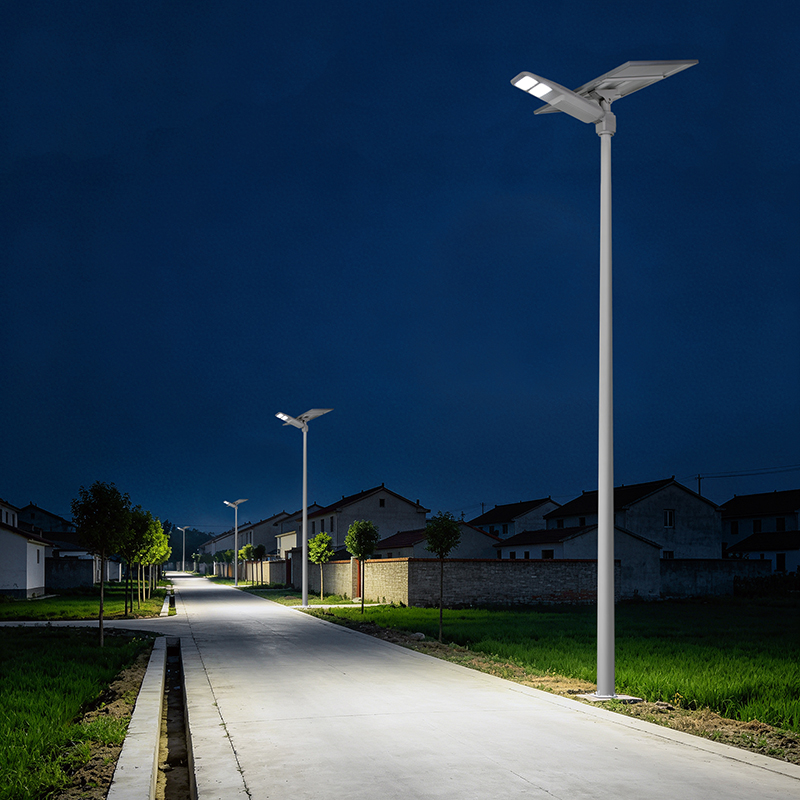

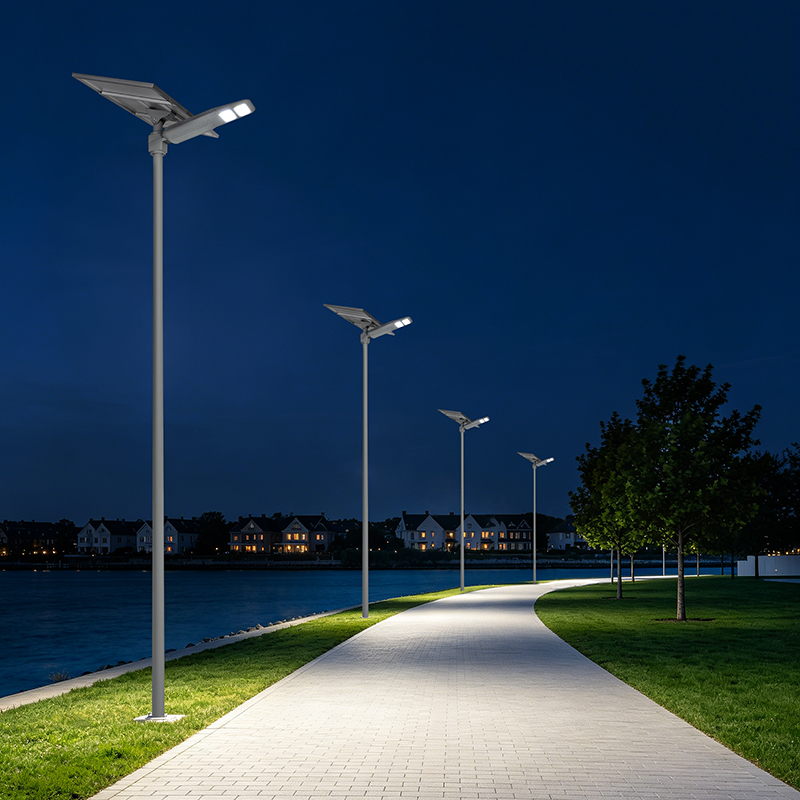

TYD1108-场景图 (12).jpg

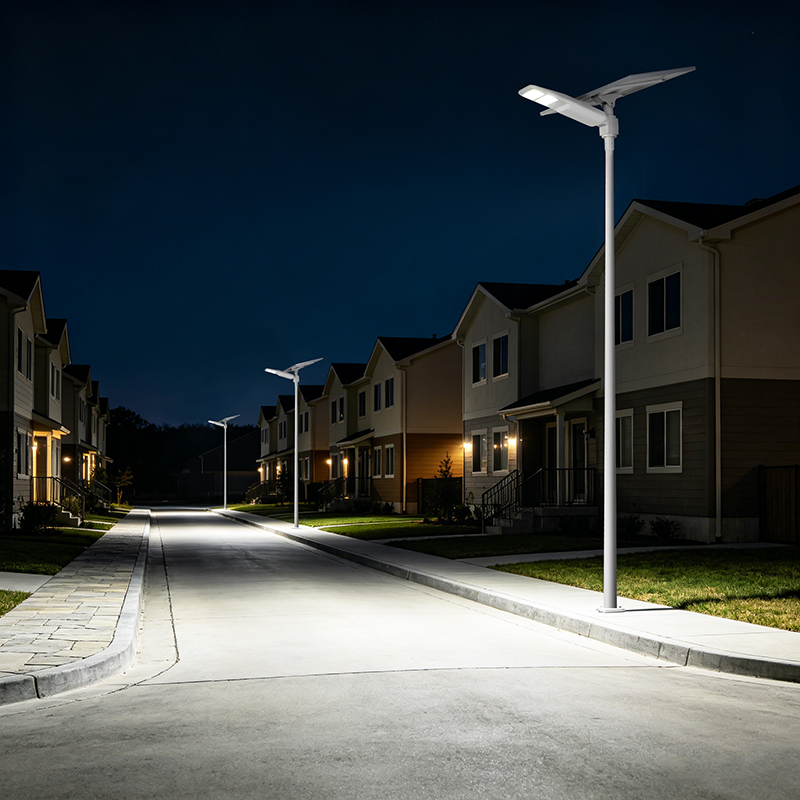

TYD1108-场景图 (2).jpg
